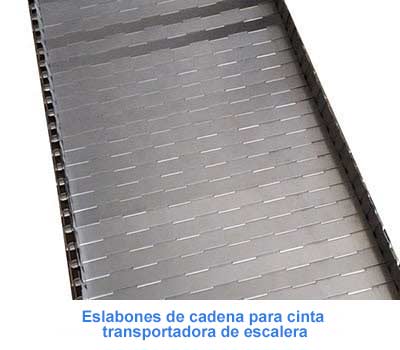

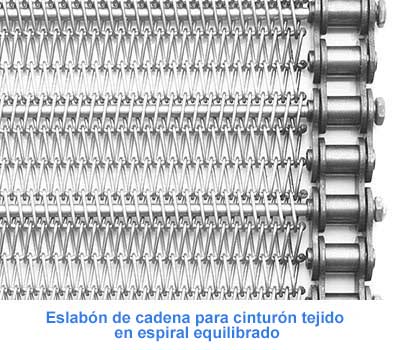

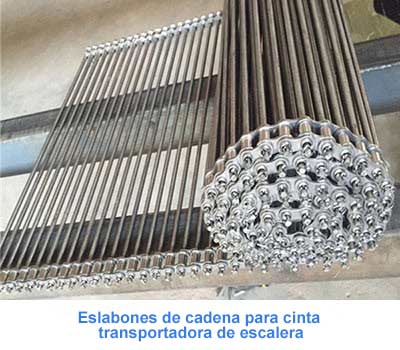

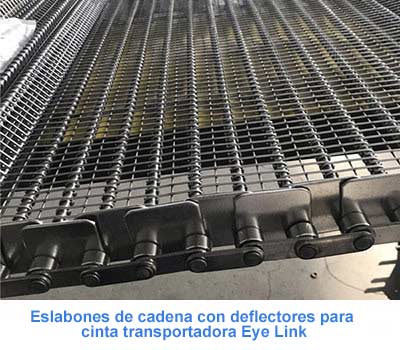

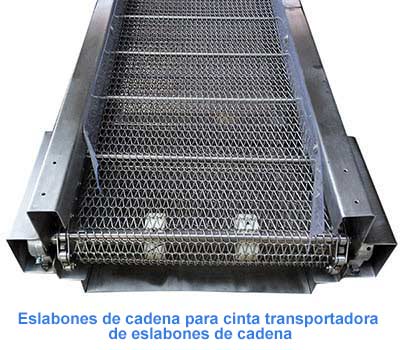

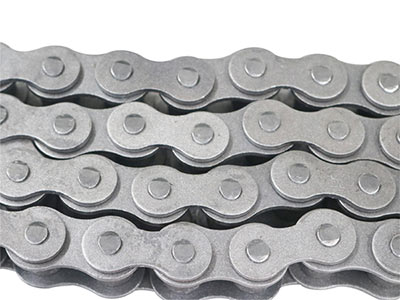

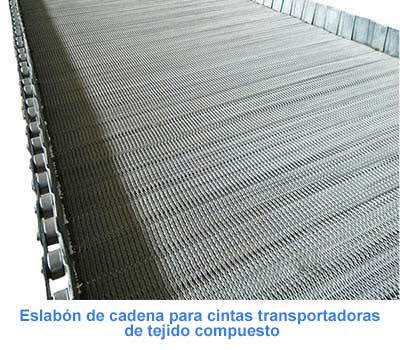

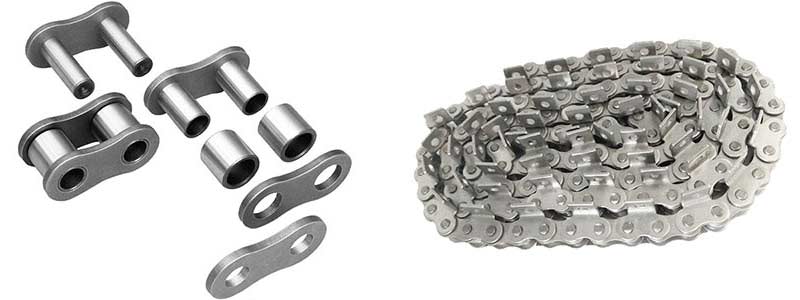

Los eslabones de cadena se utilizan ampliamente en todo tipo de cintas transportadoras metálicas como bordes. Se puede usar combinado con ruedas dentadas para asegurar un trabajo de transporte suave y altamente eficiente. Los eslabones de cadena tienen muchos tipos y especificaciones diferentes, que pueden adaptarse a más equipos y aplicaciones.
El material de los eslabones de la cadena puede ser acero al carbono, acero inoxidable o acero aleado. Las especificaciones de los eslabones de la cadena se pueden personalizar de acuerdo con los parámetros de su cinta transportadora, que ha logrado el mejor efecto de coincidencia.

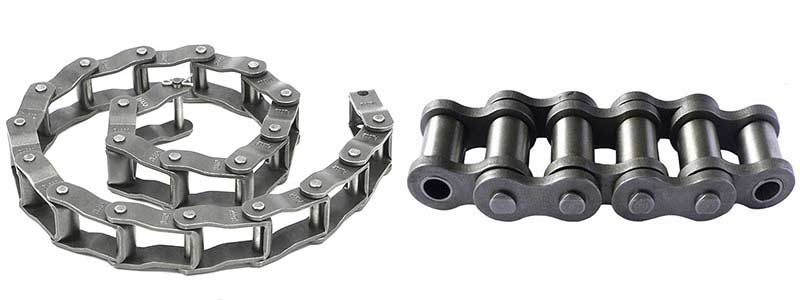

Tipos de eslabones de cadena
Cadenas de rodillos de pasador hueco

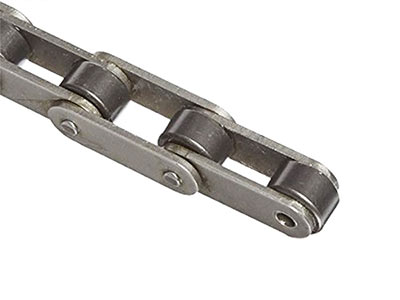

Cadenas de rodillos de doble paso

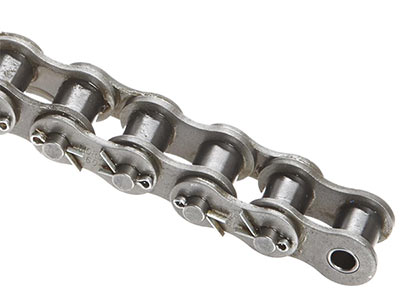

Cadena de rodillos de chaveta

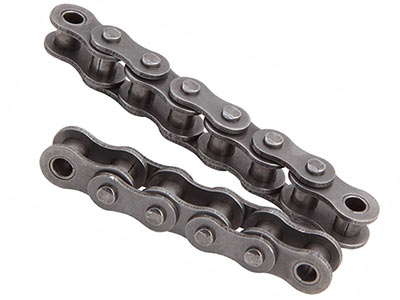

Cadenas de rodillos de un solo paso
Cadena de rodillos con pasador remachado

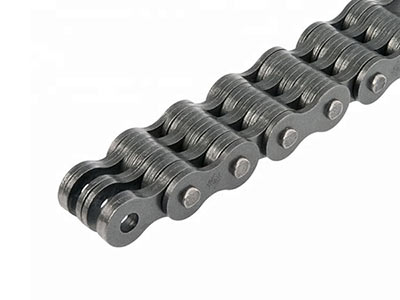

Cadena de rodillos de cadenas de hojas

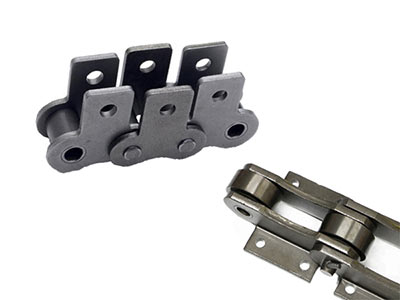

Cadenas de fijación
Disponibilidad de material
Los tipos de materiales disponibles incluyen:
Acero inoxidable - Ambientes corrosivos
Acero carbono
Otros materiales están disponibles bajo pedido.
Especificaciones

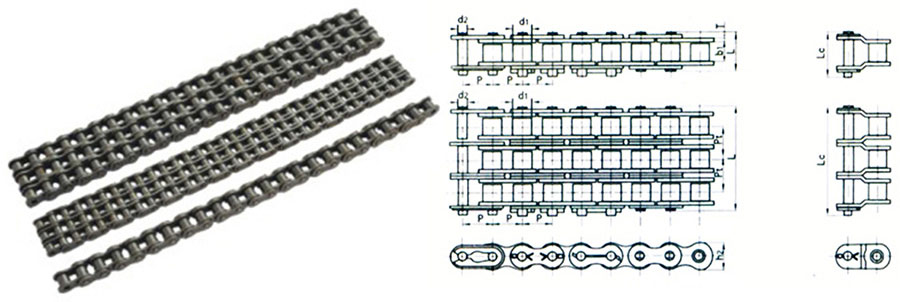

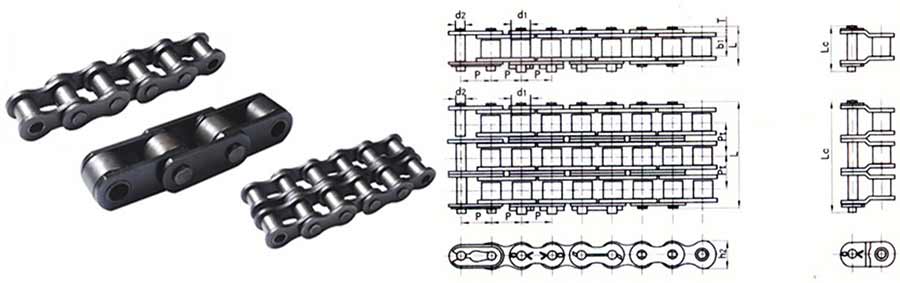

Una serie de cadenas de rodillos de precisión de paso corto
|
Cadena ISO
|
Silla ANSI
|
Tono
|
Diámetro del rodillo
|
Ancho entre placas interiores
|
Diámetro del cuerpo del pasador de cojinete
|
Ancho sobre pasador de cojinete
|
Con pasador de conexión
|
profundidad del piate interior
|
Paso transversal
|
Espesor de la placa
|
Resistencia a la tracción
|
Resistencia media a la tracción
|
Peso por metro
|
|
P
|
dl max
|
bl min
|
d2 max
|
L max
|
Lc max
|
h2 max
|
Pt
|
T
|
Q min
|
- Q
|
q
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
|
*04C-1
|
25
|
6.35
|
3.3
|
3.1
|
2.31
|
8
|
9.9
|
6.02
|
-
|
0.8
|
3.5
|
4.4
|
0.14
|
|
*06C-1
|
35
|
9.525
|
5.08
|
4.68
|
3.58
|
12.4
|
14.4
|
8.7
|
-
|
1.3
|
7.9
|
10.4
|
0.33
|
|
285-1
|
41
|
12.7
|
7.77
|
6.25
|
3.58
|
13.75
|
16
|
9.91
|
-
|
1.25
|
6.7
|
11.8
|
0.41
|
|
08A-1
|
40
|
12.7
|
7.95
|
7.85
|
3.96
|
16.6
|
19.1
|
12.07
|
-
|
1.5
|
13.8
|
17.8
|
0.62
|
|
10A-1
|
50
|
15.875
|
10.16
|
9.4
|
5.08
|
20.7
|
23.3
|
15.09
|
-
|
2
|
21.8
|
28
|
1.02
|
|
12A-1
|
60
|
19.05
|
11.91
|
12.57
|
5.94
|
25.9
|
28.6
|
18.08
|
-
|
2.44
|
31.1
|
39
|
1.5
|
|
16A-1
|
80
|
25.4
|
15.88
|
15.75
|
7.92
|
32.7
|
38
|
24.13
|
-
|
3.26
|
55.6
|
71.5
|
2.6
|
|
20A-1
|
100
|
31.75
|
11.91
|
18.9
|
9.53
|
41.1
|
44.9
|
30.18
|
-
|
4
|
86.7
|
102
|
3.91
|
|
24A-1
|
120
|
38.1
|
15.88
|
25.22
|
11.1
|
50.8
|
56.1
|
36.2
|
-
|
4.8
|
124.6
|
156.9
|
5.62
|
|
28A-1
|
140
|
44.45
|
25.4
|
25.22
|
12.7
|
54.9
|
60.8
|
42.24
|
-
|
5.65
|
169
|
210.8
|
7.5
|
|
32A-1
|
160
|
50.8
|
28.58
|
31.55
|
14.27
|
65.5
|
72.6
|
48.26
|
-
|
6.45
|
222.4
|
269.7
|
10.1
|
|
36A-1
|
180
|
57.15
|
35.71
|
35.48
|
17.46
|
72.8
|
83
|
54.31
|
-
|
7.25
|
280.2
|
327.8
|
13.45
|
|
40A-1
|
200
|
63.5
|
39.68
|
37.85
|
19.85
|
80.3
|
90.5
|
6.33
|
-
|
8
|
347
|
410
|
16.15
|
|
48A-1
|
240
|
76.2
|
47.63
|
47.35
|
23.81
|
95.5
|
106
|
72.39
|
-
|
9.5
|
500.4
|
585.4
|
23.2
|
|
*04C-2
|
2月25日
|
6.35
|
3.3
|
3.1
|
2.31
|
14.5
|
16.5
|
6.02
|
6.4
|
0.8
|
7
|
8.8
|
0.28
|
|
*06C-2
|
Feb-35
|
9.525
|
5.08
|
4.68
|
3.58
|
22.5
|
24.5
|
8.7
|
10.13
|
1.3
|
15.8
|
20.8
|
0.63
|
|
08A-2
|
Feb-40
|
12.7
|
7.95
|
7.85
|
3.96
|
31
|
33.5
|
12.07
|
14.38
|
1.5
|
27.6
|
35.6
|
1.12
|
|
10A-2
|
Feb-50
|
15.875
|
10.16
|
9.4
|
5.08
|
38.9
|
41.3
|
15.09
|
18.11
|
2
|
43.6
|
56
|
2
|
|
12A-2
|
Feb-60
|
19.05
|
11.91
|
12.57
|
5.94
|
48.8
|
51.5
|
18.08
|
22.78
|
2.44
|
62.3
|
82.4
|
2.92
|
|
16A-2
|
Feb-80
|
25.4
|
15.88
|
15.75
|
7.92
|
62.7
|
62.7
|
24.13
|
29.29
|
3.26
|
111.2
|
143
|
5.15
|
|
20A-2
|
100-2
|
.1.75
|
19.05
|
18.9
|
9.53
|
76.4
|
83.1
|
30.18
|
35.76
|
4
|
173.5
|
204.2
|
7.8
|
|
24A-2
|
120-2
|
.8.1
|
22.23
|
25.22
|
11.1
|
96.3
|
101.6
|
36.2
|
45.44
|
4.8
|
249.1
|
313.8
|
11.7
|
|
28A-2
|
140-2
|
44.45
|
25.4
|
25.22
|
12.7
|
103.6
|
109.4
|
42.24
|
48.87
|
5.65
|
338.1
|
421.7
|
15.14
|
|
32A-2
|
160-2
|
50.8
|
28.58
|
31.55
|
14.27
|
123.3
|
130.2
|
48.26
|
58.55
|
6.45
|
444.8
|
539.4
|
20.14
|
|
36A-2
|
180-2
|
57.15
|
35.71
|
35.48
|
17.46
|
138.6
|
148.5
|
54.31
|
65.84
|
7.25
|
560.5
|
655.7
|
29.22
|
|
40A-2
|
200-2
|
63.5
|
39.68
|
37.85
|
19.85
|
151.9
|
161.5
|
6.33
|
71.55
|
8
|
693.9
|
820
|
32.24
|
|
48A-2
|
240-2
|
76.2
|
47.63
|
47.35
|
23.81
|
183.4
|
193.9
|
72.39
|
87.83
|
9.5
|
1000.8
|
1170.8
|
45.23
|
|
*06C-3
|
Mar-35
|
9.525
|
5.08
|
4.68
|
3.58
|
32.7
|
34.7
|
8.7
|
10.13
|
1.3
|
23.7
|
30
|
1.05
|
|
08A-3
|
Mar-40
|
12.7
|
7.95
|
7.85
|
3.96
|
45.4
|
48
|
12.07
|
14.38
|
1.5
|
41.4
|
51.2
|
1.9
|
|
10A-3
|
Mar-50
|
15.875
|
10.16
|
9.4
|
5.08
|
57
|
59.8
|
15.09
|
18.11
|
2
|
65.4
|
82
|
3.09
|
|
12A-3
|
Mar-60
|
19.05
|
11.91
|
12.57
|
5.94
|
71.5
|
75.6
|
18.08
|
22.78
|
2.44
|
93.4
|
115
|
4.54
|
|
16A-3
|
Mar-80
|
25.4
|
15.88
|
15.75
|
7.92
|
91.7
|
96.8
|
24.13
|
29.29
|
3.26
|
166.8
|
208
|
7.89
|
|
20A-3
|
100-3
|
31.75
|
19.05
|
18.9
|
9.53
|
112.2
|
117.2
|
30.18
|
35.76
|
4
|
260.2
|
310
|
11.77
|
|
24A-3
|
120-3
|
38.1
|
22.23
|
25.22
|
11.1
|
141.7
|
148.3
|
36.2
|
35.44
|
4.8
|
373.7
|
470.7
|
17.53
|
|
28A-3
|
140-3
|
44.45
|
25.4
|
25.22
|
12.7
|
152.2
|
158.3
|
42.24
|
48.87
|
5.65
|
507.1
|
632.5
|
22.2
|
|
32A-3
|
160-3
|
50.8
|
28.58
|
31.55
|
14.27
|
181.8
|
188.6
|
48.26
|
58.55
|
6.45
|
667.2
|
809
|
30.02
|
|
36A-3
|
180-3
|
57.15
|
35.71
|
35.48
|
17.46
|
204.4
|
214.5
|
54.31
|
65.84
|
7.25
|
840.7
|
983.6
|
38.22
|
|
40A-3
|
200-3
|
63.5
|
39.68
|
37.85
|
19.85
|
223.5
|
232.9
|
60.33
|
71.55
|
8
|
1040.9
|
1230
|
49.03
|
|
48A-3
|
240-3
|
76.2
|
47.63
|
47.35
|
23.81
|
271.2
|
281.8
|
72.39
|
87.83
|
9.5
|
1501.3
|
1756.2
|
71.6
|
Cadena de rodillos de precisión de paso corto serie B
|
Cadena ISO BS No.
|
Tono
|
Diámetro del rodillo
|
Ancho entre placas interiores
|
Diámetro del cuerpo del pasador de cojinete
|
Ancho sobre pasador de cojinete
|
Con pasador de conexión
|
profundidad del piate interior
|
Paso transversal
|
Resistencia a la tracción
|
Resistencia media a la tracción
|
Peso por metro
|
|
P
|
dl max
|
bl min
|
d2 max
|
L max
|
Lc max
|
h2 max
|
Pt
|
Q min
|
- Q
|
q
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
|
*06B-1
|
9.525
|
6.35
|
5.72
|
3.28
|
13.15
|
15.15
|
8.26
|
-
|
8.9
|
10.3
|
0.41
|
|
08B-1
|
12.7
|
8.51
|
7.75
|
4.45
|
16.95
|
19.05
|
11.81
|
-
|
17.8
|
19.6
|
0.69
|
|
10B-1
|
15.875
|
10.16
|
9.65
|
5.08
|
19.5
|
22
|
14.73
|
-
|
22.2
|
27.5
|
0.93
|
|
12B-1
|
19.05
|
12.07
|
11.68
|
5.72
|
22.5
|
25.1
|
16.13
|
-
|
28.9
|
33.3
|
1.15
|
|
16B-1
|
25.4
|
15.88
|
17.02
|
8.28
|
36.1
|
41.5
|
21.08
|
-
|
60
|
71
|
2.71
|
|
20B-1
|
31.75
|
19.05
|
19.58
|
10.19
|
42.4
|
47.6
|
26.42
|
-
|
95
|
101.8
|
3.7
|
|
24B-1
|
38.1
|
25.4
|
25.4
|
14.63
|
53.4
|
60
|
33.4
|
-
|
160
|
176
|
7.1
|
|
28B-1
|
44.45
|
27.94
|
30.99
|
15.9
|
65.1
|
72.5
|
37.08
|
-
|
200
|
215.6
|
8.5
|
|
32B-1
|
50.8
|
29.21
|
30.99
|
17.81
|
66.91
|
73.6
|
42.29
|
-
|
250
|
280.3
|
10.25
|
|
40B-1
|
63.5
|
39.37
|
38.1
|
22.89
|
82.6
|
91.3
|
52.96
|
-
|
355
|
392
|
16.35
|
|
48B-1
|
76.2
|
48.26
|
45.72
|
29.24
|
99.1
|
109.6
|
63.88
|
-
|
560
|
599.2
|
25
|
|
*06B-2
|
9.525
|
6.35
|
5.72
|
3.28
|
23.4
|
27.1
|
8.26
|
10.24
|
16.9
|
18.1
|
0.74
|
|
08B-2
|
12.7
|
8.51
|
7.75
|
4.45
|
31
|
33
|
11.81
|
13.92
|
31.1
|
37.4
|
1.34
|
|
10B-2
|
15.875
|
10.16
|
9.65
|
5.08
|
36.1
|
38.6
|
14.73
|
16.59
|
44.5
|
54.2
|
1.84
|
|
12B-2
|
19.05
|
12.07
|
11.68
|
5.72
|
42
|
44.4
|
16.13
|
19.46
|
57.8
|
66.6
|
2.31
|
|
16B-2
|
25.4
|
15.88
|
17.02
|
8.28
|
68
|
73.4
|
21.08
|
31.88
|
106
|
126.5
|
5.42
|
|
20B-2
|
31.75
|
19.05
|
19.58
|
10.19
|
79.7
|
83.6
|
26.42
|
36.45
|
170
|
210
|
7.2
|
|
24B-2
|
38.1
|
25.4
|
25.4
|
14.63
|
101.4
|
108.4
|
33.4
|
48.36
|
280
|
305
|
13.4
|
|
28B-2
|
44.45
|
27.94
|
30.99
|
15.9
|
124.7
|
132.1
|
37.08
|
59.56
|
360
|
390
|
16.6
|
|
32B-2
|
50.8
|
29.21
|
30.99
|
17.81
|
125.46
|
132.4
|
42.29
|
58.55
|
450
|
487.5
|
21
|
|
40B-2
|
63.5
|
39.37
|
38.1
|
22.89
|
154.5
|
163.8
|
52.96
|
72.29
|
630
|
680.2
|
32
|
|
48B-2
|
76.2
|
48.26
|
45.72
|
29.24
|
192.4
|
200.9
|
63.88
|
91.21
|
1000
|
1070
|
20
|
|
*06B-3
|
9.525
|
6.35
|
5.72
|
3.28
|
33.5
|
37.3
|
8.26
|
10.24
|
24.9
|
29.8
|
1.16
|
|
08B-3
|
12.7
|
8.51
|
7.75
|
4.45
|
44.9
|
47.2
|
11.81
|
13.92
|
44.5
|
50.2
|
2.03
|
|
10B-3
|
15.875
|
10.16
|
9.65
|
5.08
|
52.7
|
55.6
|
14.73
|
16.59
|
66.7
|
79.8
|
2.77
|
|
12B-3
|
19.05
|
12.07
|
11.68
|
5.72
|
61.5
|
65.2
|
16.13
|
19.46
|
86.7
|
101.8
|
3.46
|
|
16B-3
|
25.4
|
15.88
|
17.02
|
8.28
|
99.8
|
105.3
|
21.08
|
31.88
|
160
|
190
|
8.13
|
|
20B-3
|
31.75
|
19.05
|
19.58
|
10.19
|
114.55
|
121.2
|
26.42
|
36.45
|
250
|
276.2
|
10.82
|
|
24B-3
|
38.1
|
25.4
|
25.4
|
14.63
|
150.2
|
156.8
|
33.4
|
48.36
|
425
|
480
|
20.1
|
|
28B-3
|
44.45
|
27.94
|
30.99
|
15.9
|
184.3
|
191.7
|
37.08
|
59.56
|
530
|
580
|
24.92
|
|
32B-3
|
50.8
|
29.21
|
30.99
|
17.81
|
184.01
|
191
|
42.29
|
58.55
|
670
|
720.2
|
31.56
|
|
40B-3
|
63.5
|
39.37
|
38.1
|
22.89
|
226.8
|
236.1
|
52.96
|
72.29
|
950
|
1020
|
48.1
|
|
48B-3
|
76.2
|
48.26
|
45.72
|
29.24
|
281.6
|
292.1
|
63.88
|
91.21
|
1500
|
1590
|
75
|

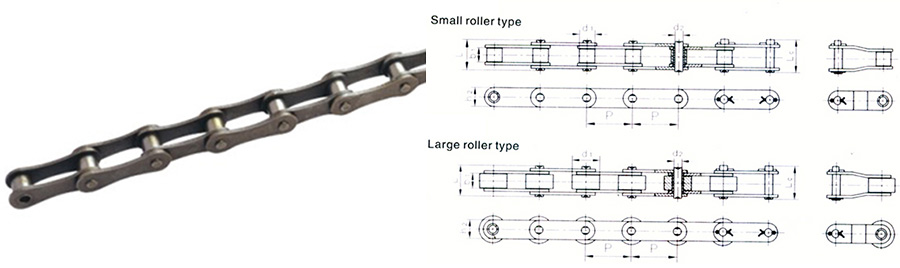

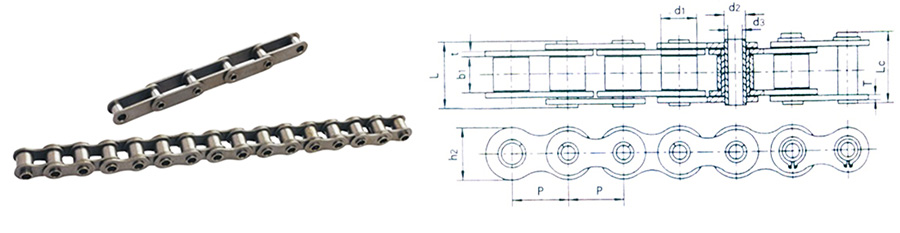

Cadena transportadora de doble paso
|
Cadena DIN ISO No.
|
Cadena ANSI No.
|
Tono
|
diámetro del rodillo
|
Ancho entre placas interiores
|
diámetro del pasador
|
longitud del pasador
|
en Piate Deotg
|
Resistencia a la tracción
|
Resistencia media a la tracción
|
Peso por metro
|
|
P
|
dl
max
|
bl
min
|
d2
max
|
L
max
|
Lc
max
|
h2
max
|
Q
min
|
Qo
|
q
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
|
C208A
|
C2040
|
25.4
|
7.95
|
7.85
|
3.96
|
16.6
|
18.8
|
12
|
14.1
|
16
|
0.5
|
|
C208AL
|
C2042
|
25.4
|
15.88
|
7.85
|
3.96
|
16.6
|
18.8
|
12
|
14.1
|
16
|
0.84
|
|
C208B
|
|
25.4
|
8.51
|
7.75
|
4.45
|
16.7
|
18.2
|
11.8
|
18
|
19.3
|
0.55
|
|
C208BL
|
|
25.4
|
15.88
|
7.75
|
4.45
|
16.7
|
18.2
|
11.8
|
18
|
19.3
|
0.89
|
|
C210AL
|
C2052
|
31.75
|
19.05
|
9.4
|
5.08
|
20.7
|
23.3
|
15
|
22.2
|
26.5
|
1.27
|
|
C212A
|
C2060
|
38.1
|
11.91
|
12.57
|
5.94
|
25.9
|
28.3
|
18
|
31.8
|
35.5
|
1.12
|
|
C212AL
|
C2062
|
38.1
|
22.23
|
12.57
|
5.94
|
25.9
|
28.3
|
18
|
31.8
|
35.5
|
1.61
|
|
C212AH
|
C2060H
|
38.1
|
11.91
|
12.57
|
5.94
|
29.2
|
31.6
|
18
|
31.8
|
39.3
|
1.44
|
|
C212AHL
|
C2062H
|
38.1
|
22.23
|
12.57
|
5.94
|
29.2
|
31.6
|
18
|
31.8
|
39.3
|
2.07
|
|
C216A
|
C2080
|
50.8
|
15.88
|
15.75
|
7.92
|
32.7
|
36.5
|
24
|
56.7
|
66.2
|
2.08
|
|
C212AL
|
C2082
|
50.8
|
28.58
|
15.75
|
7.92
|
32.7
|
36.5
|
24
|
56.7
|
66.2
|
3.12
|
|
C216AH
|
C2080H
|
50.8
|
15.88
|
15.75
|
7.92
|
36.2
|
39.4
|
24.4
|
56.7
|
68.8
|
2.54
|
|
C216AHL
|
C2082H
|
50.8
|
28.58
|
15.75
|
7.92
|
36.2
|
39.4
|
24.4
|
56.7
|
68.8
|
3.58
|
|
C220A
|
C2100
|
63.5
|
19.05
|
18.9
|
9.53
|
40.4
|
44.7
|
30
|
88.5
|
103.6
|
3.01
|
|
C220AL
|
C2102
|
63.5
|
39.67
|
18.9
|
9.53
|
40.4
|
44.7
|
30
|
88.5
|
103.6
|
4.83
|
|
C220AH
|
C2100H
|
63.5
|
19.05
|
18.9
|
9.53
|
43.6
|
46.9
|
30
|
88.5
|
106.6
|
3.56
|
|
C220AHL
|
C2102H
|
63.5
|
39.67
|
18.9
|
9.53
|
43.6
|
46.9
|
30
|
88.5
|
106.6
|
5.38
|
|
C224A
|
C2120
|
76.2
|
22.23
|
25.22
|
11.1
|
50.3
|
54.3
|
35.7
|
127
|
147
|
4.66
|
|
C224AL
|
C2122
|
76.2
|
44.45
|
25.22
|
11.1
|
50.3
|
54.3
|
35.7
|
127
|
147
|
7.66
|
|
C224AH
|
C2120H
|
76.2
|
22.23
|
25.22
|
11.1
|
53.5
|
57.5
|
36.2
|
127
|
151.2
|
5.26
|
|
C224AHL
|
C2122H
|
76.2
|
44.45
|
25.22
|
11.1
|
53.5
|
57.5
|
36.2
|
127
|
151.2
|
8.26
|
|
C232A
|
C2160
|
101.6
|
28.58
|
31.75
|
14.27
|
64.8
|
69.6
|
47.8
|
226.8
|
260.2
|
8.23
|
|
C232AL
|
C2162
|
101.6
|
57.15
|
31.75
|
14.27
|
64.8
|
69.6
|
47.8
|
226.8
|
260.2
|
11.95
|
|
C232AH
|
C2160H
|
101.6
|
28.58
|
31.75
|
14.27
|
68.2
|
73
|
47.8
|
226.8
|
266.8
|
9.06
|
|
C232AHL
|
C2162H
|
101.6
|
57.15
|
31.75
|
14.27
|
68.2
|
73
|
47.8
|
226.8
|
266.8
|
12.77
|

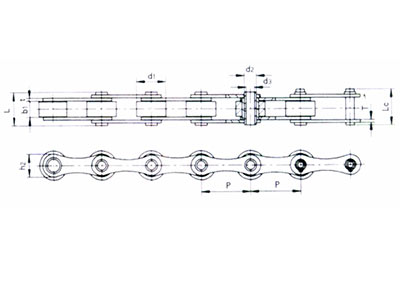

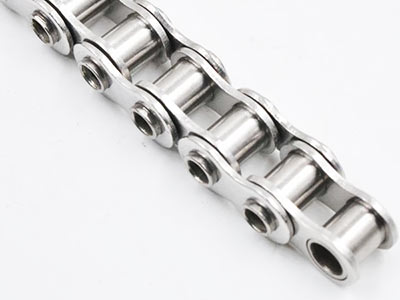

Cadena de pasador hueco
|
Cadena Tailong No
|
Tono
|
Diámetro del arbusto
|
Ancho entre placas interiores
|
Diámetro del cuerpo del pasador de cojinete
|
Ancho sobre cojinete ping
|
profundidad del piate interior
|
Espesor de la placa
|
Resistencia a la tracción
|
Resistencia media a la tracción
|
Peso por metro
|
Tipo de formulario
|
|
P
|
d1 min
|
bl max
|
d3 max
|
h2 max
|
L max
|
Lc max
|
h2 max
|
t/T max
|
Q min
|
Q
|
q
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
Kg/m
|
|
|
08BHPF
|
12.7
|
8.51
|
7.75
|
6.55
|
4.5
|
16.4
|
17.6
|
11.8
|
1.6/1.3
|
11.1
|
12.1
|
0.56
|
A
|
|
40HP
|
12.7
|
7.95
|
7.85
|
5.63
|
4
|
16.5
|
17.6
|
12
|
1.5
|
11
|
12.2
|
0.54
|
A
|
|
50HP
|
15.875
|
10.16
|
9.4
|
7.03
|
5.13
|
20.7
|
21.9
|
15.09
|
2.03
|
20.02
|
22.6
|
0.91
|
A
|
|
60HP
|
19.05
|
11.91
|
12.7
|
8.31
|
6
|
25.8
|
26.8
|
18
|
2.42
|
24
|
26.9
|
1.29
|
A
|
|
60HPF1
|
19.05
|
11.91
|
12.7
|
8.31
|
5.01
|
25.5
|
26.8
|
18
|
2.42
|
28
|
30.9
|
1.37
|
A
|
|
80HP
|
25.4
|
15.88
|
15.75
|
11.4
|
8.05
|
32.5
|
33.8
|
24
|
3.25
|
50
|
58.3
|
2.26
|
A
|
|
Cadena Tailong No
|
Tono
|
Diámetro del arbusto
|
Ancho entre placas interiores
|
Diámetro del pasador de cojinete
|
Ancho sobre pasador de cojinete
|
profundidad del piate interior
|
Espesor de la placa
|
Resistencia a la tracción
|
Resistencia media a la tracción
|
Peso por metro
|
Tipo de formulario
|
|
P
|
d1
|
bl
|
d2
max
|
d3
max
|
L
max
|
Lc
max
|
h2
max
|
t/T
max
|
Q
min
|
Q
|
q
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
|
|
C2040HP
|
25.4
|
7.95
|
7.85
|
5.63
|
4
|
16.5
|
17.6
|
12
|
1.5
|
11
|
12.6
|
0.46
|
B
|
|
C2042HP
|
25.4
|
15.88
|
7.85
|
5.63
|
4
|
16.5
|
17.6
|
12
|
1.5
|
11
|
12.6
|
0.46
|
B
|
|
C2050HP
|
31.75
|
10.16
|
9.4
|
7.22
|
5.12
|
20.5
|
21.8
|
15
|
2.03
|
20.4
|
22.8
|
0.76
|
B
|
|
C2052HP
|
31.75
|
19.05
|
9.4
|
7.22
|
5.12
|
20.5
|
21.8
|
15
|
2.03
|
20.4
|
22.8
|
0.76
|
B
|
|
C2060HP
|
38.1
|
11.91
|
12.7
|
8.31
|
6
|
25.8
|
26.8
|
17
|
2.42
|
24
|
27.1
|
1.02
|
B
|
|
C2062HP
|
38.1
|
22.23
|
12.7
|
8.31
|
6
|
25.8
|
26.8
|
17
|
2.42
|
24
|
27.1
|
1.02
|
B
|
|
C2080HP
|
50.8
|
15.88
|
15.75
|
11.4
|
8.05
|
32.5
|
33.8
|
24
|
3.25
|
50
|
55.2
|
1.81
|
B
|
|
C2082HP
|
50.8
|
28.58
|
15.75
|
11.4
|
8.05
|
32.5
|
33.8
|
24
|
3.25
|
50
|
55.2
|
1.81
|
B
|
Cadena de hojas
|
Cadena ISO No.
|
Silla ANSI No.
|
Tono
|
Platrs Lacing
|
Muerte pirata
|
Espesor de la placa
|
diámetro del pasador
|
longitud del pasador
|
Resistencia a la tracción
|
Resistencia media a la tracción
|
peso por metro
|
|
P
|
|
h2 max
|
T max
|
d2 max
|
L max
|
Q max
|
Qq
|
q
|
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
|

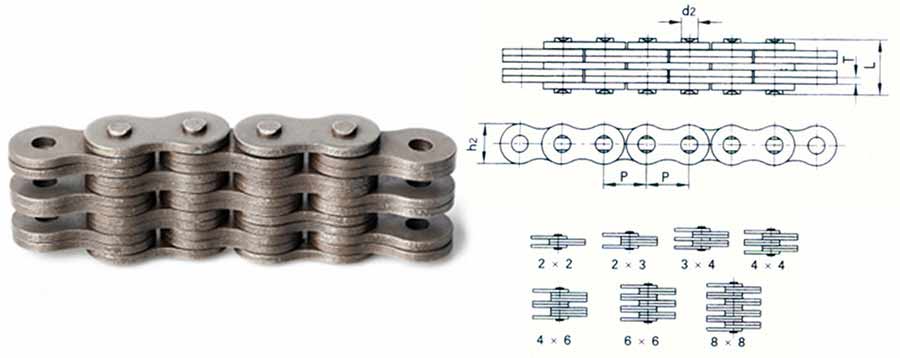

LH0822
|
BL422
|
|
2 × 2
|
|
|
|
11.05
|
22.2
|
27.6
|
0.64
|
|
LH0823
|
BL423
|
|
2 × 3
|
|
|
|
13.16
|
22.2
|
27.6
|
0.8
|
|
LH0834
|
BL434
|
|
3 × 4
|
|
|
|
17.4
|
33.4
|
41.4
|
1.12
|
|
LH0844
|
BL444
|
12.7
|
4 × 4
|
12.07
|
|
|
19.51
|
44.5
|
56
|
1.26
|
|
LH0846
|
BL446
|
|
4 × 6
|
|
|
|
23.75
|
44.5
|
56
|
1.6
|
|
LH086646
|
BL466
|
|
6 × 6
|
|
|
|
27.99
|
66.7
|
81.7
|
1.92
|
|
LH0888
|
BL488
|
|
8 × 8
|
|
|
|
36.45
|
89
|
109.4
|
2.56
|
|
LH1022
|
BL522
|
|
2 × 2
|
|
|
|
12.9
|
33.4
|
42.8
|
0.88
|
|
LH1023
|
BL523
|
|
2 × 3
|
|
|
|
15.37
|
33.4
|
42.8
|
1.1
|
|
LH1034
|
BL534
|
|
3 × 4
|
|
|
|
20.32
|
48.9
|
63.6
|
1.5
|
|
LH1044
|
BL544
|
15
|
4 × 4
|
15.09
|
2.44
|
5.96
|
22.78
|
66.7
|
84.5
|
1.8
|
|
LH1046
|
BL546
|
|
4 × 6
|
|
|
|
27.74
|
66.7
|
84.5
|
2.2
|
|
LH1066
|
BL566
|
|
6 × 6
|
|
|
|
32.69
|
100.1
|
125.1
|
2.65
|
|
LH1088
|
BL588
|
|
8 × 8
|
|
|
|
42.57
|
133.4
|
169.5
|
3.5
|
|
LH1222
|
BL622
|
|
2 × 2
|
|
|
|
17.37
|
48.9
|
63.6
|
1.45
|
|
LH1223
|
BL623
|
|
2 × 3
|
|
|
|
20.73
|
48.9
|
63.6
|
1.8
|
|
LH1234
|
BL634
|
|
3 × 4
|
|
|
|
27.43
|
75.6
|
102.6
|
2.5
|
|
LH1244
|
BL 644
|
875
|
4 × 4
|
18.11
|
3.3
|
7.94
|
30.78
|
97.9
|
122.3
|
2.9
|
|
LH1246
|
BL 646
|
|
4 × 6
|
|
|
|
37.49
|
97.9
|
122.3
|
3.6
|
|
LH1266
|
BL666
|
|
6 × 6
|
|
|
|
44.2
|
146.8
|
190.8
|
4.3
|
|
LH1288
|
BL688
|
|
8 × 8
|
|
|
|
57.61
|
195.7
|
238.8
|
5.8
|
|
LH1622
|
BL822
|
|
2 × 2
|
|
|
|
21.34
|
84.5
|
108.2
|
2.2
|
|
LH1623
|
BL823
|
|
2 × 3
|
|
|
|
25.48
|
84.5
|
108.2
|
2.7
|
|
LH1634
|
BL834
|
|
3 × 4
|
|
|
|
33.76
|
129
|
143.6
|
3.8
|
|
LH1644
|
BL844
|
19.05
|
4 × 4
|
24.13
|
4.09
|
9.54
|
37.9
|
169
|
214.6
|
4.3
|
|
LH1646
|
BL846
|
|
4 × 6
|
|
|
|
46.18
|
169
|
214.6
|
5.4
|
|
LH1666
|
BL866
|
|
6 × 6
|
|
|
|
54.46
|
253.6
|
324.5
|
6.5
|
|
LH1688
|
BL888
|
|
8 × 8
|
|
|
|
17.02
|
338.1
|
432.7
|
8.6
|
|
LH2022
|
BL1022
|
|
2 × 2
|
|
|
|
25.37
|
115.6
|
146.8
|
3.4
|
|
LH2023
|
BL1023
|
|
2 × 3
|
|
|
|
30.33
|
115.6
|
146.8
|
4.3
|
|
LH2034
|
BL1034
|
|
3 × 4
|
|
|
|
40.23
|
182.4
|
231.6
|
6
|
|
LH2044
|
BL1044
|
25.4
|
4 × 4
|
30.18
|
4.9
|
11.11
|
45.19
|
231.3
|
291.4
|
6.9
|
|
LH2046
|
BL1046
|
|
4 × 6
|
|
|
|
55.09
|
231.3
|
291.4
|
8.6
|
|
LH2066
|
BL1066
|
|
6 × 6
|
|
|
|
65
|
347
|
430.3
|
10.3
|
|
LH2088
|
BL1088
|
|
8 × 8
|
|
|
|
84.81
|
462.6
|
555.1
|
13.8
|
+86-15369679157
